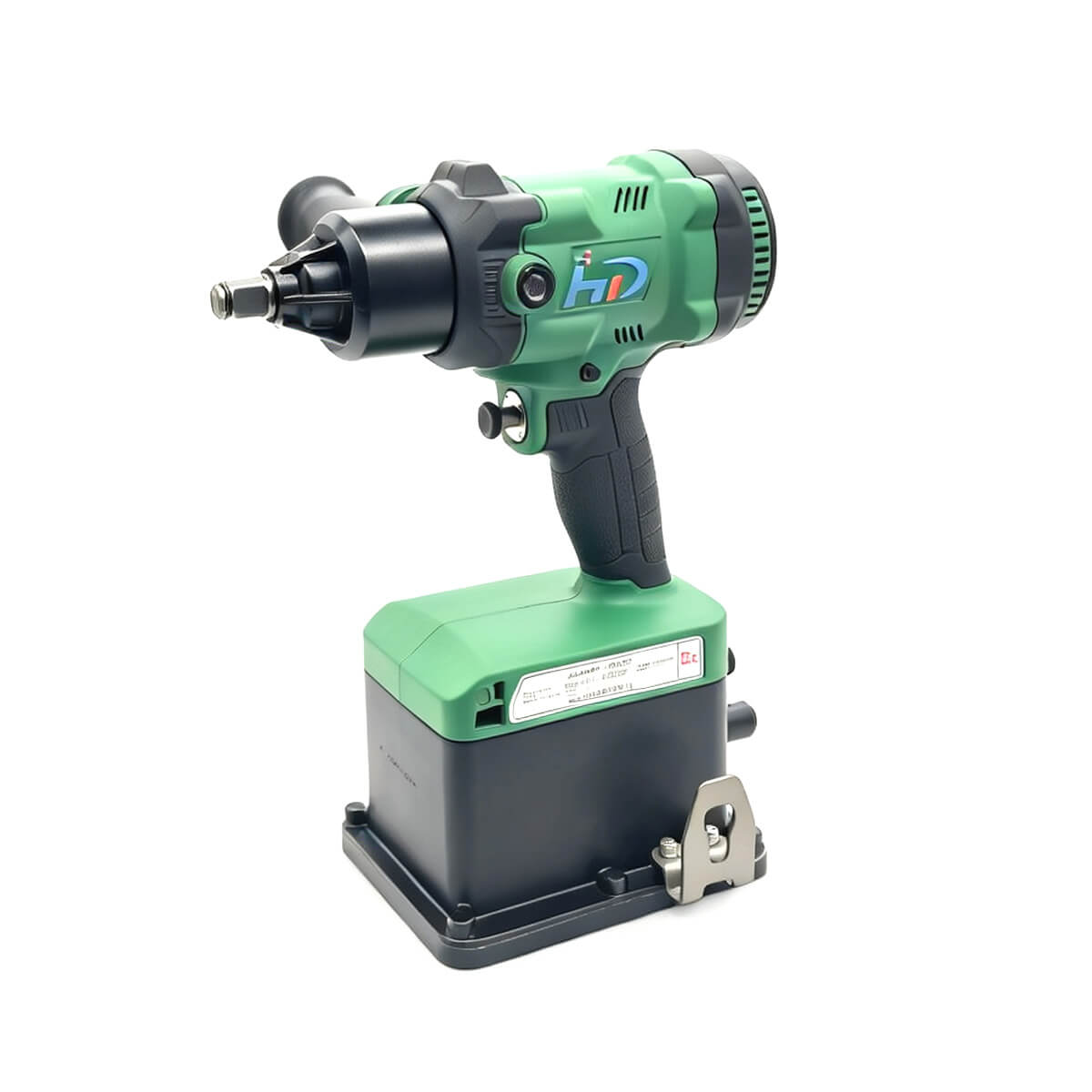

DB1500/32A

Product Dimensions

• Overall Dimensions: 228 mm × 125 mm × 307 mm

• Weight: Approx. 6.2 kg (including battery)

Features

• Adjustable speed, torque, and rotation direction.

• Interchangeable bits for versatile use.

• Overspeed protection and stall protection

• battery anti-disengagement locking mechanism

Operating Environment & Conditions

• Ambient Temperature: 0℃ to +40℃

• Average Relative Humidity: ≤95% at 25°C

• Atmospheric Pressure: 80 kPa to 106 kPa

• Applicable to industrial sites containing flammable and explosive dust and gas

• Underground coal mine environments with explosion hazards such as methane and coal dust, free from direct dripping or water spray

• Areas free from intense vibration and mechanical impact

• Areas free from corrosive gases that damage metals and insulation materials

Packaging, Transportation and Storage

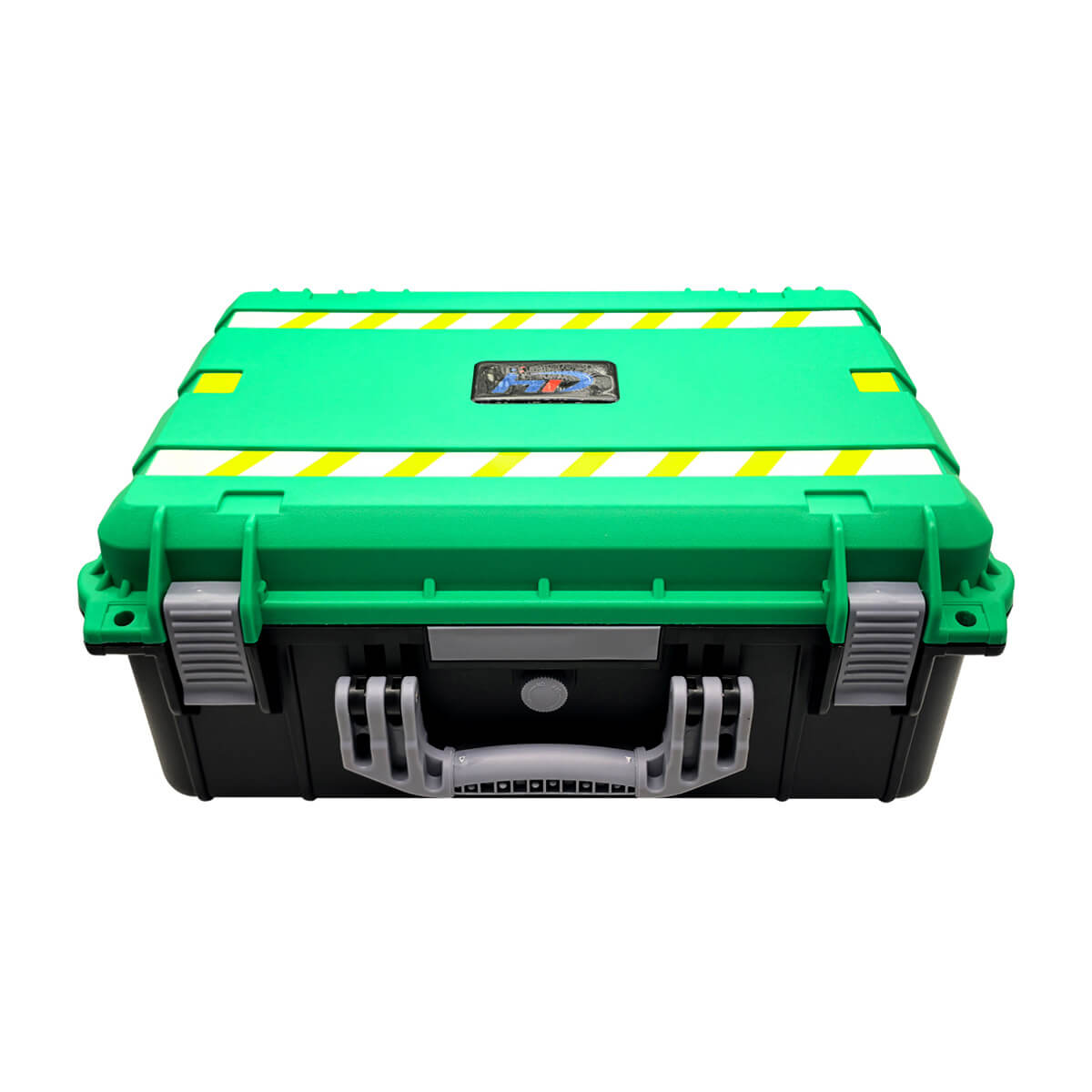

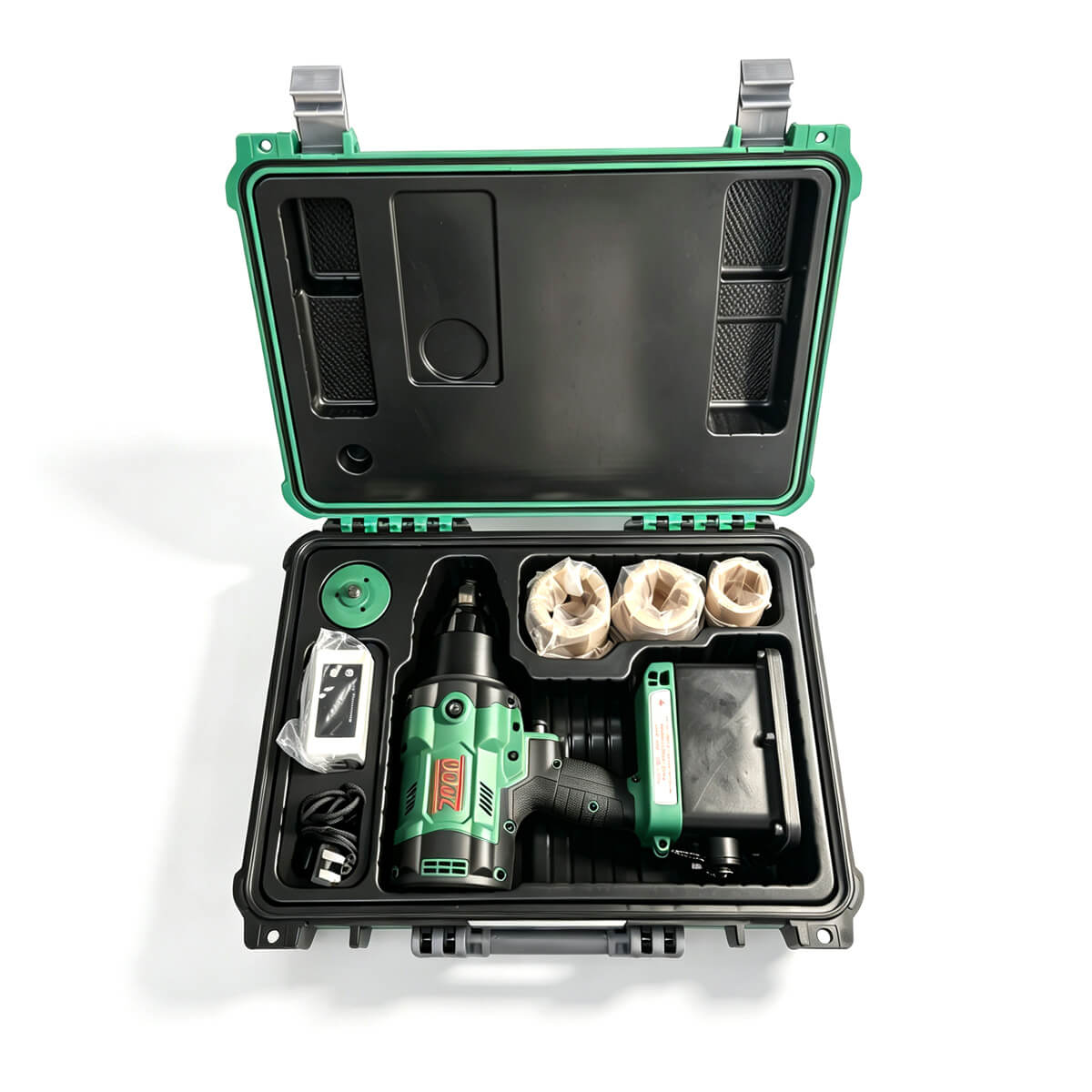

• The packing box contains: Coal Mine Safety Certificate, Explosion-proof Certificate, Product Qualification Certificate, User Manual, Torque Wrench, Charger, Accessories and Packing List.

• The packed torque wrench is suitable for sea, land and air transport, provided it is shielded from direct rain/snow, intense vibration and collisions.

• During transportation, the goods shall be protected by a tarpaulin against sunlight, rain, dust and mechanical damage. They must also be kept away from acids, alkalis and other corrosive gases; and protected from severe jolting, vibration, and impact.

• After packaging, the torque wrench can be stored indoors for one year at temperatures ranging from -10°C to +40°C, with a relative humidity of no more than 90%, and in an environment free from corrosive substances and severe vibration.
